KDT235-DC
XY Stages

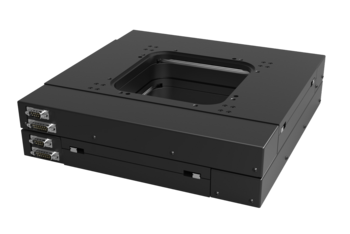

XY microscopy stage (ball screw), travel 50 x 50 mm, aperture 100 mm, rep ± 0.5 µm, load 8 kg, speed 60 mm/s
Scanning stage with large aperture
The space-saving design and large aperture characterize these robust XY stage. High precision ball screws and adjustable othogonality ensure highly precise positioning and running accuracies.
Designed for microscopy tasks
|
|
|
Options:
|
Fields of application
High-<link en/competence-center-positioning-technology/glossary/detail/?tx_dpnglossary_glossarydetail%5Bcontroller%5D=Term&tx_dpnglossary_glossarydetail%5Baction%5D=show&tx_dpnglossary_glossarydetail%5Bterm%5D=118&tx_dpnglossary_glossarydetail%5BpageUid%5D=252&cHash=63e7db6214b28acbc8b38f32b43ce162 title="smallest change in distance that a system can distinguish">resolution applications in microscopy, optical inspection systems, 3D imaging, screening, incident light measurements, transmitted light measurements, interferometry, metrology, autofocus systems, biotechnology, semiconductor testing
| Modell KDT235 | -50-DC-R | -50-DC-L | |
| Travel | [mm] | 50 | 50 |
| Repeatability unidirectional | [μm] | ± 2 | ± 0.5 |
| Repeatability bidirectional | [μm] | ± 2.5 | ± 0.7 |
| Accuracy | [μm] | ± 7.4 | ± 2.3 |
| Flatness | [μm] | ± 3.5 | ± 3.5 |
| Straightness | [μm] | ± 2.5 | ± 2.5 |
| Positioning speed | [mm/s] | 30 | 30 |
| Max. speed | [mm/s] | 60 | 60 |
| Max. acceleration | [m/s2] | 0.5 | 0.5 |
| Max. load Fx | [N] | 45 | 45 |
| Max. load Fy | [N] | 45 | 45 |
| Max. load Fz | [N] | 85 | 85 |
| Max. torque Mx | [Nm] | 5.2 | 5.2 |
| Max. torque My | [Nm] | 5.2 | 5.2 |
| Max. torque Mz | [Nm] | 7.2 | 7.2 |
| Pitch | [µrad] | ± 110 | ± 110 |
| Yaw | [µrad] | ± 70 | ± 70 |
| Weight | [kg] | 10 | 10 |
| Length | [mm] | 235 | 235 |
| Width | [mm] | 235 | 235 |
| Height | [mm] | 80 | 80 |
| Aperture | [mm] | 100 | 100 |
| Motor | DC-Motor | DC-Motor | |
| Feedback | Motor-Encoder | Linear Scale |
FMC 220
Versatile combinable controller, ideal for laboratory applications, control of 1 - 128 axes simultaneously
FMC400/450
Multi-axis controller fully ready for tracking, simple creation of own programs.
FMC 250/280
Multi-axis controller with increased current and voltage for point-to-point positioning.
PLC
We support integration of our systems into PLC architectures, e.g. Beckhoff
