DT310-DC
Rotary Stages

Precise rotary stage for universal use, large aperture 100 mm, 120 N load, 0.004° repeatability, DC-Motor

Flat rotary stage with large aperture

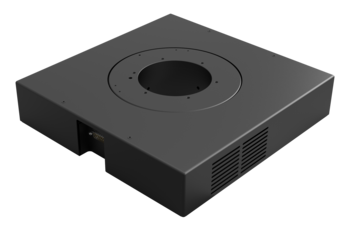

The high-precision rotary stage, with its flat design and excellent process accuracy, enables a wide range of applications. Due to its large aperture, it is particularly suitable for tasks in the inspection and medical industry.

Universally suitable for applications with large aperture

Unlimited travel range

Load capacity up to 120 N

High repeatability up to 0.004 µrad

Optionally available with Stepper Motor or AC servo with motor encoder and various measuring system resolutions

Fields of application

Universal application e.g. micro metrology, medical industry, sample inspection, precision micro assembly, photonics and optics, research and development, experimental physics

Specifications

DT310		DC-R
Travel	[deg]	n x 360
Repeatability unidirectional	[deg]	± 0.004
Repeatability bidirectional	[deg]	± 0.006
Accuracy	[deg]	± 0.074
Excentric runout	[μm]	± 3
Positioning speed	[deg/s]	59
Max. acceleration	[deg/s²]	1178
Max. load Fz	[N]	120
Max. load torque Mz	[Nm]	12.2
Max. load torque Mx,y	[Nm]	22.9
Length	[mm]	310
Width	[mm]	310
Height	[mm]	65
Aperture	[mm]	100
Weight	[kg]	6.2
Motor		DC-Motor
Feedback		Motor-Encoder
