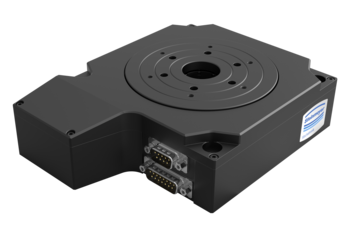

DT130-DC
Rotary Stages

Rotary stage with worm gear drive and DC motor for high selfretaining forces and repeatibility.

Rotary stage with high resolution

The DT130 rotary stage has been designed to precisely position small loads. The worm gear drive guarantees very high selfretaining forces in the desired position and - due to the high resolution - simultaneous high repeatability.

Easy to control and combine

The DT130 is available with stepper motor oder DC motor and is easy to control with our innovative FMC series motion controllers. In addition, the rotary stage can be combined with the matching MT130 micro stage to form complex multi-axis systems.

Optimum for measurement engineering

The operating parameters of the DT130 rotary stage correspond with the special requirements in applications such as measurement engineering. It is also ideal for use in applications in laser machining, photonics or in research and development.

Specifications

DT130		-DC-R	-DC-W
Travel	[deg]	nx360	nx360
Repeatability unidirectional	[deg]	± 0.005	± 0.002
Repeatability bidirectional	[deg]	± 0.007	± 0.004
Accuracy	[deg]	± 0.07	± 0.015
Excentric runout	[μm]	± 5	± 5
Positioning speed	[deg/s]	90	90
Max. acceleration	[deg/s²]	900	900
Max. load F_z	[N]	40	40
Max. load torque M_z	[Nm]	0.5	0.5
Max. load torque M_x,y	[Nm]	3	3
Weight	[kg]	2	2

Controllers

FMC 220

Versatile combinable controller, ideal for laboratory applications, control of 1 - 128 axes simultaneously

PLC

We support integration of our systems into PLC architectures, e.g. Beckhoff

Download

STM-DT130-DC_SM_rotary-stage_data-sheet.pdf

STM_DT130-DC_SM_rotary-stage_CAD-data.zip
