KT230-EDLM
XY Stages

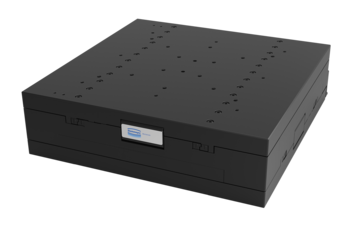

Performance XY stage (linear motor), travel 110 x 110 mm, rep ± 0.3 µm, load 5 kg, speed 300 mm/s

Scanning stage for highly dynamic applications

This compact XY stage was specially designed as a fast scanning stage for various measurement applications. It combines high stiffness with excellent performance, while the integrated linear motors ensure high dynamics.

This KT series is available in three sizes, each with different travels: up to 110 mm (KT230), 210 mm (KT305) and 320 mm (KT405) in X and Y direction.

Fast with high resolution and accuracy

Ideal for scanning applications in metrology and microscopy

High-precision repeatability up to 0.3 µm

High speeds up to 300 mm/s

Position save function secures the exact position of the stages, when the motors are „off“

Fields of application

Metrology, high-resolution microscopy, screening, confocal microscopy, biotechnology, 3-D imaging, interferometry

Specifications

Modell KT230		-110-EDLM-L
Travel	[mm]	110
Repeatability unidirectional	[μm]	± 0.3
Repeatability bidirectional	[μm]	± 0.4
Accuracy	[μm]	± 2
Flatness	[μm]	± 2.2
Straightness	[μm]	± 1.7
Positioning speed	[mm/s]	200
Max. speed	[mm/s]	300
Max. acceleration	[m/s²]	4
Max. load Fx	[N]	15
Max. load Fy	[N]	15
Max. load Fz	[N]	50
Max. torque Mx	[Nm]	2.6
Max. torque My	[Nm]	2.6
Max. torque Mz	[Nm]	2.4
Pitch	[µrad]	± 100
Yaw	[µrad]	± 50
Length	[mm]	230
Width	[mm]	230
Height	[mm]	80
Weight	[kg]	12
Motor		Dynamischer Linearmotor (eisenlos), Ironless Dynamic Linear Motor
Feedback		Linearmesssystem, Linear Scale

Controllers

FMC 250/280

Multi-axis controller with increased current and voltage for point-to-point positioning.

FMC 220

Versatile combinable controller, ideal for laboratory applications, control of 1 - 128 axes simultaneously

FMC400/450

Multi-axis controller fully ready for tracking, simple creation of own programs.

PLC

We support integration of our systems into PLC architectures, e.g. Beckhoff
