LA85-SM
Linear Axes

Focus axis (ball screw), travel 25 - 50 mm, rep ± 1.6 µm, load 4.5 kg in X/Y/Z, speed 60 mm/s
LA85-SM

Integratable for horizontal and vertical applications

This compact and robust linear axis is easy to integrate and is characterized by an optimum price-­performance ratio together with precise operating parameters. For this reason, this linear axis is favored for large and small series.

  • Ideal for high precision focusing of sensors or optics
  • Perfect flatness with up to ± 0.6 µm
  • Load capacity up to 45 N

Options:

  • Available with DC motor or stepper motor
  • With linear scale for a highly accurate measurement of the actual position up to ± 0.3 µm
  • Version for clean room and vacuum on request

Fields of application

Focusing of sensors or optics, setup of scanning applications, laboratory microskopy, handling systems, printing, multi-axis systems, 3D printing, research and development



Modell LA85   -25-SM -50-SM
Travel [mm] 25 50
Repeatability unidirectional [µm] ± 1.6 ± 1.6
Repeatability bidirectional [µm] ± 2.1 ± 2.1
Accuracy [µm] ± 4.2 ± 5.6
Flatness [µm] ± 0.6 ± 1.3
Straightness [µm] ± 0.5 ± 1
Positioning speed [mm/s] 30 30
Max. speed [mm/s] 60 60
Max. acceleration [m/s2] 0.6 0.6
Max. load Fx [N] 45 45
Max. load Fy [N] 40 40
Max. load Fz [N] 40 40
Max. torque Mx [Nm] 1.4 1.4
Max. torque My [Nm] 1.5 1.5
Max. torque Mz [Nm] 1.4 1.4
Pitch [µrad] ± 30 ± 35
Yaw [µrad] ± 15 ± 20
Weight [kg] 1.2 1.2
Length [mm] 160 190
Width [mm] 90 90
Height [mm] 42 42
Motor   Stepper Motor Stepper Motor
Feedback   - -

The LA85-SM can also be equipped with a linear scale in the stepper motor version.

This allows the actual position to be measured with a high accuracy of ± 0.3 µm and, for example, a measuring process to be triggered on-the-fly. Please contact us for the necessary trigger module.

However, an actual closed-loop position control with stepper motor is only possible with our FMC 2xx controllers. For such cases, a DC or BLDC drive is usually more suitable.



Related Products

1 LA85-DC - Linear Axes

Focus axis (ball screw), travel 25 - 50 mm, rep ± 0.5 µm, load 4.5 kg in X/Y/Z, speed 60 mm/s

1 LTP80-SM - Linear Stages

Compact linear stage (ball screw), travel 150 - 550 mm, rep ± 4.6 µm, load 9,5 kg, speed 60 mm/s

1 LTP90-SM - Linear Stages

Linear stage (ball screw), travel 50 - 300 mm, rep ± 2.3 µm, load 10 kg, speed 40 mm/s

1 MT95-SM - Miniature Linear stages

Linear Stage 95 x 95 x 40 mm, Travel up to 40 mm, Rep 2.1 µm, Load 6 kg, Speed 11 mm/s

1 LTP60-DC - Linear Stages

Compact linear stage ( ball screw), travel 50 - 250 mm, rep ± 5.5 µm, load 6,5 kg, speed 200 mm/s

2 MT63-SM - Miniature Linear stages

Micro stage for high precision applications. Driven by a stepper motor.

1 MT130-SM - Miniature Linear stages

Linear Stage 130 x 130 x 43 mm, Travel up to 80 mm, Rep 2.3 µm, Load 9 kg, Speed 40 mm/s

1 PMT160-SM - Linear Stages

Precision linear stage (ball screw), travel 50 -300 mm, rep ± 1.9 µm, load 15 kg, speed 20 mm/s

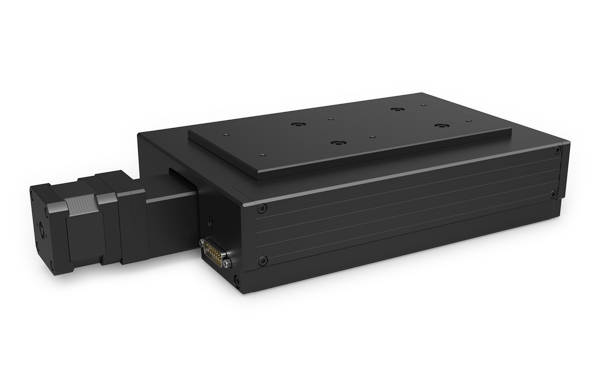

2 HT160-SM - Lifting Stages
