Lifting Stages

Our lifting stages are used for high precision, vertical positioning. They are used separately or in combination with linear stages, if probes or components need to be adjusted vertically.

Motors
Feedback

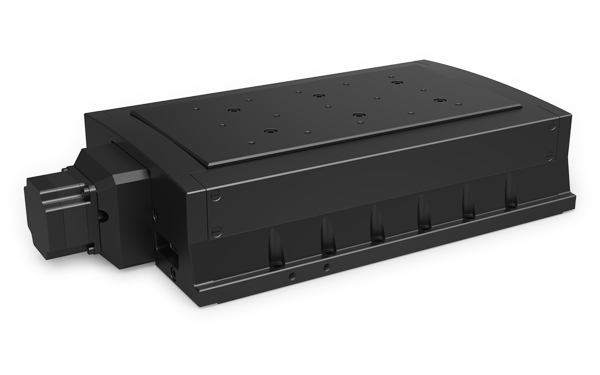

2 HT240-AC - Lifting Stages

High load vertical z stage (ball screw), travel 25 mm, rep ± 0.7 µm, load 44 kg, speed 16.6 mm/s

2 HT240-SM - Lifting Stages

High load vertical z stage (ball screw), travel 25 mm, rep ± 1.7 µm, load 44 kg, speed 3.4 mm/s

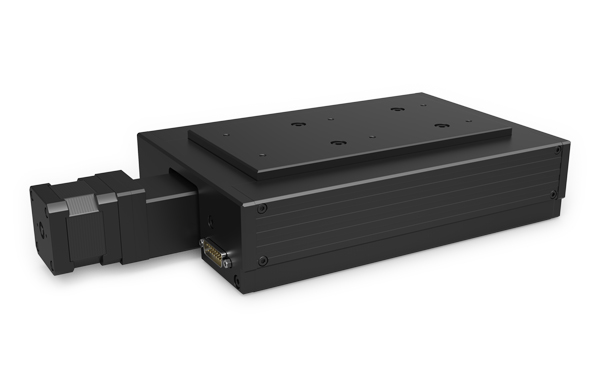

2 HT160-DC - Lifting Stages

Precision vertical lift stage (ball screw), travel 16 mm, rep ± 0.7 µm, load 5 kg, speed 16.6 mm/s

2 HT160-SM - Lifting Stages

Precision vertical lift stage (ball screw), travel 16 mm, rep ± 1.7 µm, load 5 kg, speed 2,2 mm/s

Angepasstes System für Ihr Gesamtkonzept

Your customized system

Stages for cleanroom and vacuum applications

Even more stage for your clean room and vacuum applications?

Almost all atmospheric standard axes are anodized with UHV lubrication for residual pressures up to 10-6 mbar and clean room class ISO 6 - or even better - available. Click here for the overview of our vacuum and clean room stages!
