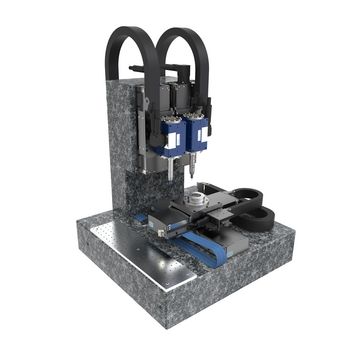

XYZ Two Excenter Drilling Machine
Handling and Production

782482:001.26

Many very small holes are to be drilled in a short time. The drills are attached to an excenter dive stage with solid bearings acting as vertical displacement units. The workpiece is being moved with a robust and fast PLT stage.

Controllers

FMC 300

Installation module for dynamic applications and high loads and voltage.

PLC

We support integration of our systems into PLC architectures, e.g. Beckhoff

Used Standard Components

KGT 1412 / 1432

Flange single nut with 4-point-contact with internal ball return
