Assembly system for diagnostic imaging systems (ISO 3 clean room) | XY ball screw, AC-Servo
Handling and Production

782300:238.26



New solutions for imaging diagnostics

These axes are used in alignment machines and are part of an optical measuring and image evaluation system. This allows components and their position to be measured. By precisely approaching and holding the positions, an optical image recognition system can measure distances and provide feedback to other motion systems that adjust and finalize the position to existing systems.

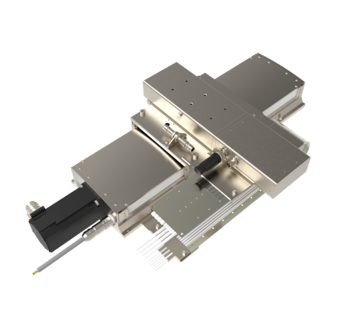

Robust Industrial XY System with Metrology Accuracy

  • Particles and other contaminants cannot get onto the positioned workpiece
  • Consistent product quality at high throughput with speeds up to 250 mm/s
  • Extremely high durability - ideal for continuous industrial operation
  • Virtually particle-free positioning (ISO Class 3 cleanroom requirement)
  • Special, hermetically sealed motors with pharmaceutical approval

Optionally expandable:

  • Various travels per axis
  • Versions ISO 14644-1 (up to class 1 on request)
  • Immediate use with pre-configured controller incl. exemplary software

Suitable for demanding environmental conditions

  • Particles and other contaminants cannot get onto the positioned workpiece
  • Penetration of cleaning agents during disinfection and cleaning is excluded, for easier cleaning the wiring has been adapted
  • The parts accessible from the outside are fully nickel-plated and wipeable
  • Insensitivity to all vibrations and environmental influences due to the use of a stiff ball screw drive


    Individual extensions and customizations

    Engineering services include the fitting of the systems to your structure and the desired controlls. Furthermore, we develop prototypes and like to adapt the systems to the environmental requirements of your application particle emission, radiation, temperature, precision special parts manufacturing, working height, collision protection, safety concept, compensation factor and filter, sensor mounting, brake, decoupling, special lubrication, special colors, holders, adapters, special motors with pharmaceutical approval, comprehensive documentation, test protocoll, llife cycle tests

    Fields of application

    Assembly of medical devices, Alignment of optical components as well as cameras, pacemakers and insulin pumps, High-resolution imaging diagnostics, Dental camera assembly system, Optical image recognition, Precise alignment of assemblies, High-precision assembly systems, Miniaturization, Production suitable for pharmaceuticals

    References

    2021/03 Press release Precision for the Age of Light



    782300:238.26   X Y
    Travel [mm; deg] 200 25
    Repeatability bidirectional [µm; deg] ± 0.5 ± 0.5
    Positioning speed [mm/s; deg/s] 125 12.5
    Max. load [N] 50
    Motor

    AC-Servo

    AC-Servo

    Drive   Ball Screw Ball Screw
    Feedback



    Linear Scale

    Linear Scale
