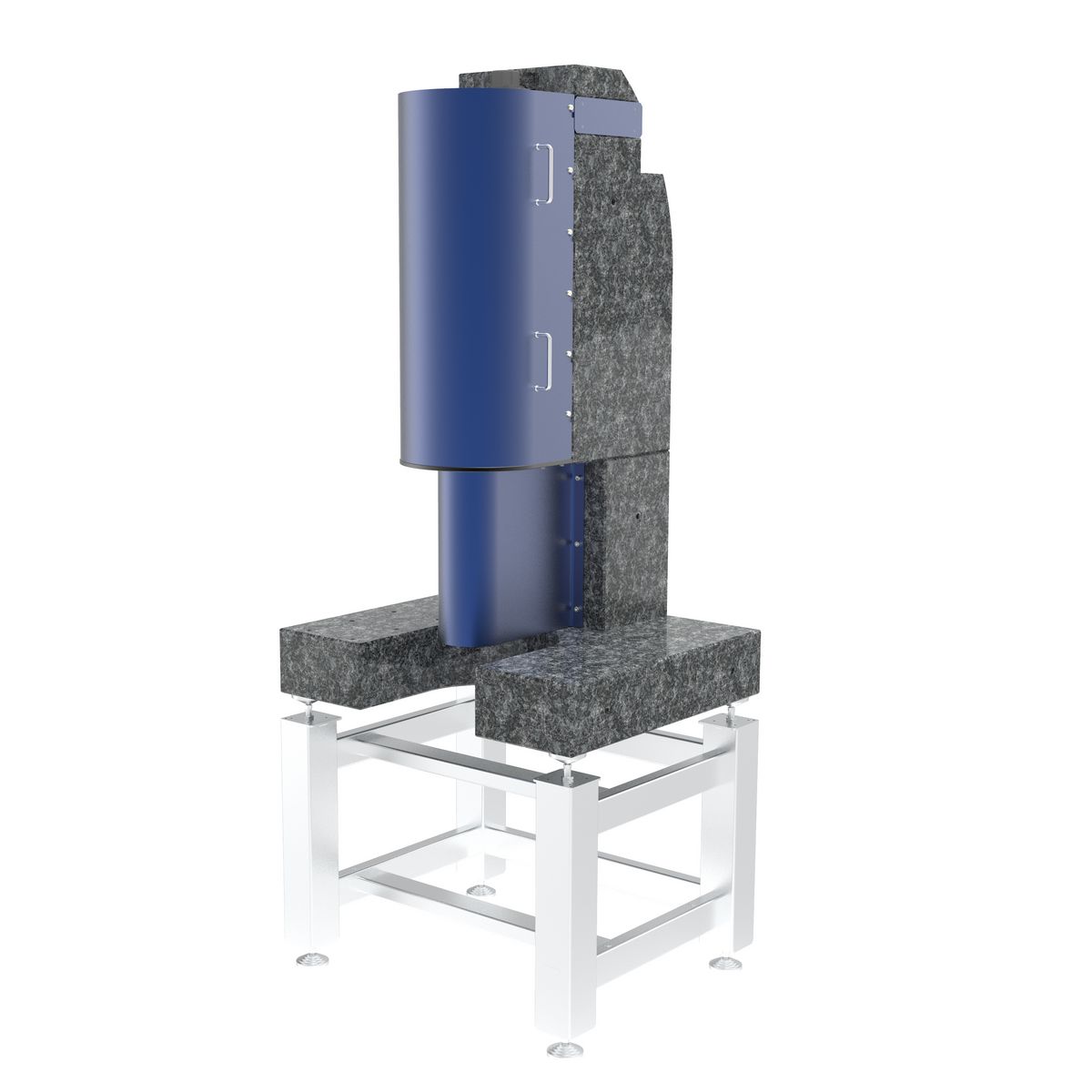

Laser Drill Machine
Handling and Production

782472:001.26

This system was designed for the laser treatment of the bore of cylinders. The shaft rotates with up to 6000 rpm and can be extended up to 300 mm. Rotation an feed are supported by air bearings. A torque motor drives the rotation while a ball screw drive is used for the feed.

Controllers

FMC 220

Versatile combinable controller, ideal for laboratory applications, control of 1 - 128 axes simultaneously

FMC400/450

Multi-axis controller fully ready for tracking, simple creation of own programs.

PLC

We support integration of our systems into PLC architectures, e.g. Beckhoff

Used Standard Components

KGT 1412 / 1432

Flange single nut with 4-point-contact with internal ball return
