Mobile microscope stand for rollers | Measurement of cylindrical, large, sensitive specimens
Inspection and Mikroscopy

782444:005.26

High-precision, flexible and mobile inspection

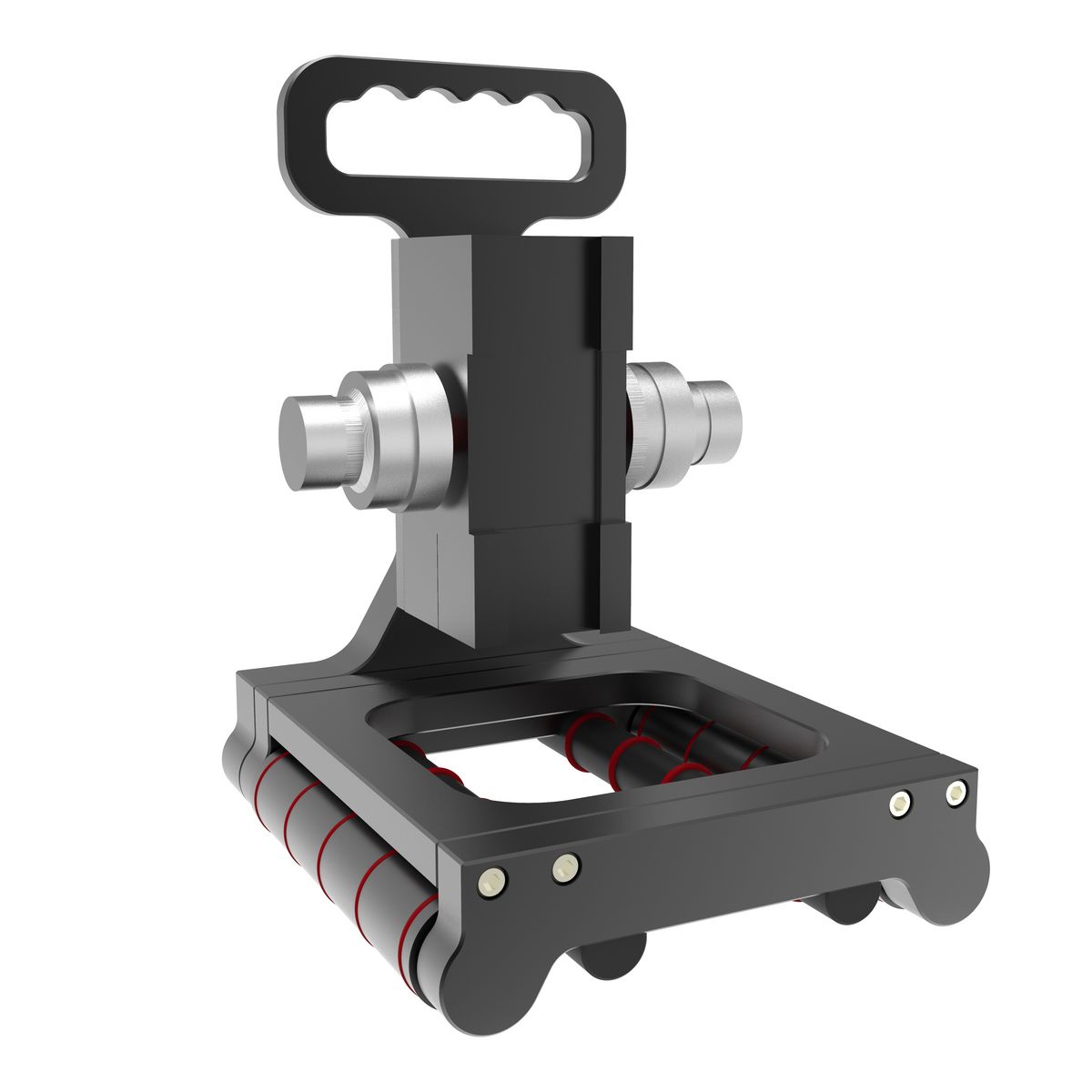

This stand is used for digital microscopes to inspect cylindrical shapes e.g. rollers and light, large and highly sensitive specimens. The stand is placed together with the microscope on the roller or samples to be inspected. Rubber rings on the rollers protect the surface of the roller to be examined. The rollers are braked in their bearings. This results in a stable position, which can also be corrected on the circumference.

Flexibly adaptable to your microscope and for different samples

Ideal for manual, mobile and inexpensive inspection of large samples

Allows flexible inspection of rollers of different diameters and large, delicate straight specimens

Especially lightweight and stable for inspection of large, thin sheets as well as glass substrates e.g. solar panels

Infinite horizontal travel due to rollers with vertical adjustment range of 60 mm for the microscope

Options:

Expandable with dovetail interface
Attachment kit (rollers) to adjust the working distance of different objective types
Additional rollers inside for measurement for smaller diameter rollers
Adjuster for X-Y offset
Can be combined with motorized Z-lifting

Fields of application

High-resolution inspection of rollers, printing rollers, large printing plates of various printing processes, large, thin sheets as well as glass substrates e.g. solar panels, chips, transportable measuring microscope, measurement of structures on rollers of different sizes, inspection of flat and cylindrical products by means of microscope, depth measurement, measurement / inspection of printing plates, foils, films or film assemblies, inspection systems for the printing industry, classification of surface defects

Specifications

782444:005.26		X	Y	Z
Travel	[mm; deg]	(2.5)	(2.5)	40
Repeatability unidirectional	[µm; deg]	± 0,005	± 0,005	± 0,005
Repeatability bidirectional	[µm; deg]	± 0,01	± 0,01	± 0,01
Max. Load	[kg]			5
Drive		manual	manual	manual
