Circular Measuring Gauge for concentricity, circularity and cylindricity | measuring range: max. length 400 mm / Ø 35 mm
Inspection and Mikroscopy

782492:001.26

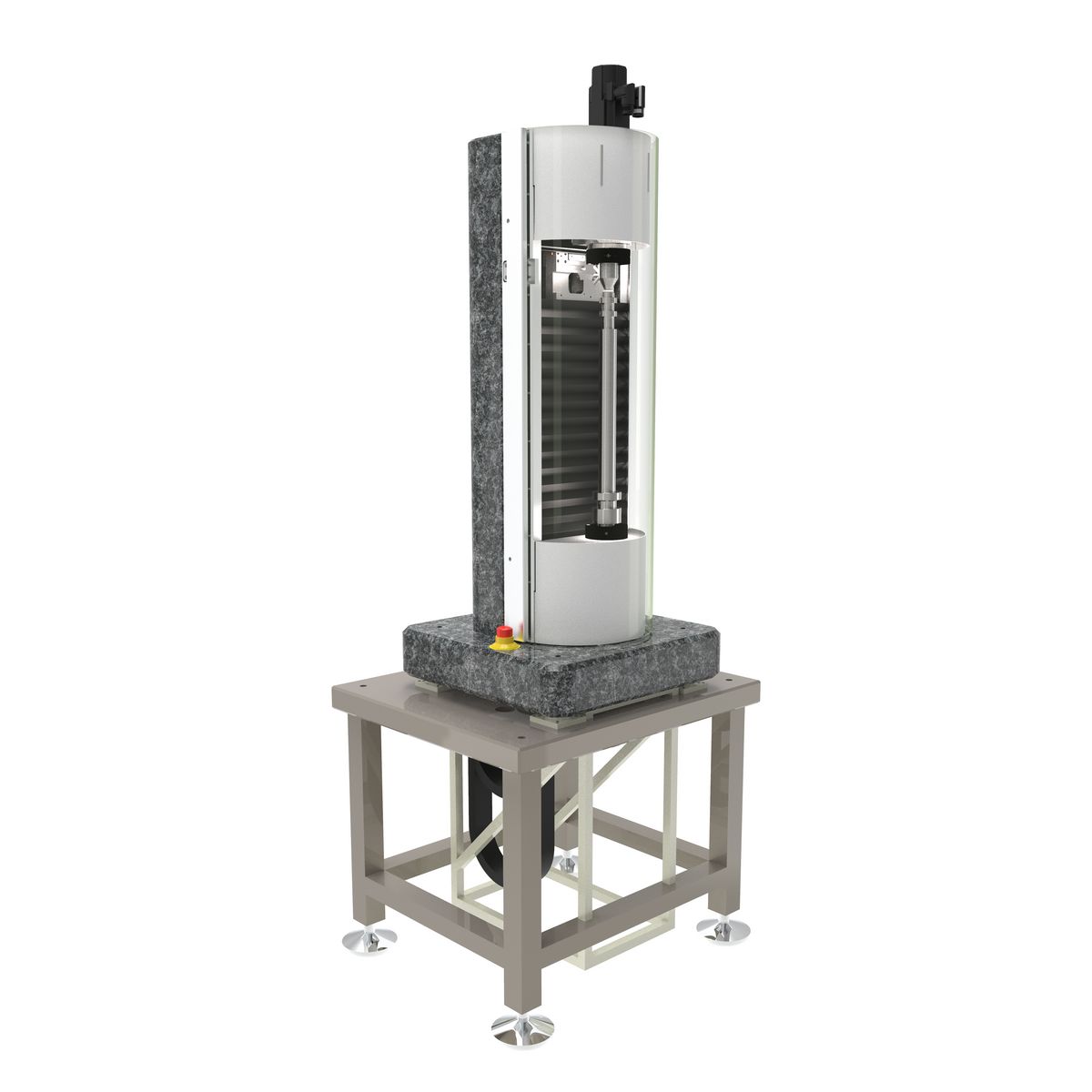

Universal circularity measurement of cylindrical objects

The force asserted by gravity is disturbing during measurement of cylindricity of long objects. Hence, the measured object is being held between toe bearing units. The cones of the toe bearing units were ground in the complete assembly during movement in order to minimize eccentricity. Vertical movement is provided by a stage comprised of linear guidings directly mounted onto a granite base. A ball screw drive is used for the vertical movement.

Universal test bench for lengths up to 400 mm and Ø 35 mm

Ideal for universal concentricity, circularity and cylindricity testing of sample shafts with optical distance sensor

Accuracy class < 1 µm

High-precision alignment of shaft / linear axis

Synchronization of the two drives

Options:

Extendable travels
Adaptation to the process: sample holder, extension of additional (motorized) X/Y axes
Adapted vibration decoupling
Safety concept and technology (emergency stop, door switch, light grid, laser scanner, STO, SLS)
Individual design with rack, enclosure or integration into the process
Customized development with prototypes, series production

Specifications

782492:001.26		Z	Rz
Travel	[mm; deg]	800	-
Repeatability unidirectional	[µm; deg]	± 1	± 1
Repeatability bidirectional	[µm; deg]	± 1	-
Concentricity error	[µm; deg]	-	2
Tumbling error	[µm; deg]	-	2
Positioning speed	[mm/s; deg/s]	125	120
Max. speed	[mm/s; deg/s]	250	240
Max. sample dimension	[mm]	Ø 35 mm / length 400 mm
Length x width x height	[mm]	700 x 600 x 1800 with frame / 500 x 500 x 1050 without frame
Weight	[kg]	315 (with frame)
Drive		Ball Screw rolled 1432.506/5.12.651.697
Screw lead		5
Bearing		Profile Rail	Cross Roller bearing
Motor		AC Servo	AC Servo
Feedback		Linear Scale	Motor Encoder
Optional features		With or without brake, vibration damping, safety concept and installation (emergency stop, door switch, safety light curtains, laser scanner, STO, SLS)
Variants cleanroom		up to clean room class ISO 6 (higher on request)
Variants beam		UV, DUV (EUV, X-ray, gamma on request)
Variants magnetism		magnetic (low-magnetic on request)
Variants vacuum		on request
