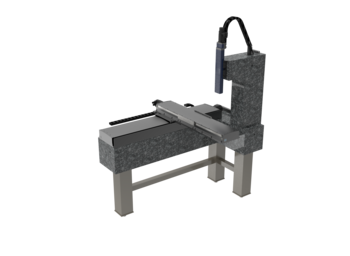

XYZ industrial portal (positioning in case of dust, radiation, temperature) | profile rail, ball screw drive, AC servo | Travel 1000 x 600 x 100 mm
Portals

782300:201.26
XYZ industrial portal (positioning in case of dust, radiation, temperature) | profile rail, ball screw drive, AC servo | Travel 1000 x 600 x 100 mm - Portals



Modular, industrial-grade 3-axis Positioningsystem

The XY combination with separate Z Stage is composed of the high-precision and durable standard linear stages PLT320 (X-axis), PLT240 (Y-axis) and LTP80 (Z-axis). This combination is suitable for the flexible and modular design of production systems / inline processes and can be optionally extended with a rotary stage.

  • Ideal for the set-up and expansion of industrial machinery (dust, radiation, temperature)
  • Large travels up to 1000 x 600 x 100 mm
  • High loads up to 35 kg

Options:

  • Rotary motions in combination with DT165
  • Adaptation to the process: aperture, sample holder, extension of the Z-axis
  • Individual design with frame, vibration isolation, housing
  • Individual solution development with 3D design for the positioning task

Individual extensions and customizations

Engineering services include the fitting of the systems to your structure and the desired motion control or the completely individual solution development with 3D design for the application-specific positioning task.

Furthermore, we develop prototypes and like to adapt the systems to the environmental requirements of your application particle emission, radiation, temperature, precision special parts manufacturing, working height, collision protection, safety concept, compensation factor and filter, sensor mounting, brake, decoupling, special lubrication, special colors, holders, adapters, special motors with pharmaceutical approval, comprehensive documentation, test protocoll, llife cycle tests.


Fields of application

Positioning in laser processing, welding system, inline process positioning, inspection of long samples, positioning systems in industrial environments under dust, radiation, temperature fluctuations



782300:201.26 X Y Z
Standard System PLT320 PLT240 LTP80
Travel [mm] 1000 600 100
Repeatability unidirectional   [µm] ± 3.5 ± 3.5 ± 7
Repeatability bidirectional   [µm] ± 5 ± 5 ± 10
Positioning speed [mm/s] 42.5 42.5 10
Max. speed [mm/s] 85 85 20
Max. acceleration [m/s2] 0.7 0.7
Max. Load [N] 350 350 150
Weight [kg] 1065
Length x width x height [mm] 1300 x 1700 x 1600
Spindle type 1536.501/10.25.1215.1382E (ETA+) 1416.628/5.20.935.1075 P3P 1432.507/5.12.451.497 T7P / 152500
Spindle lead 10 5 5
Drive   Ball Screw Ball Screw Ball Screw
Guide   Profile Rail Profile Rail Profile Rail
Motor   AC Servo AC Servo AC Servo
Feedback   Motor Encoder Motor Encoder Motor Encoder
Material   Anodized Aluminum, Granite, Steel
Optional features Rotary stage (DT165), safety concept, tilt protection, housing
Variants clean room  on request
Variants beam UV (DUV, EUV, X-ray, gamma on request)
Variants magnetism magnetic



Used Standard Components

KGT ETA+

Energy-efficient ETA+ ball screws with reduced friction and high rigidity

PLT240-AC

High performance stage (ball screw), travel 200 - 850 mm, rep ± 0.4 µm, load 64 kg, speed 260 mm/s

PLT320-AC

Heavy duty linear stage (ball screw), travel 300 - 1000 mm, rep ± 2 µm, load 106 kg, speed 260 mm/s

LTP80-SM

Compact linear stage (ball screw), travel 150 - 550 mm, rep ± 4.6 µm, load 9,5 kg, speed 60 mm/s
