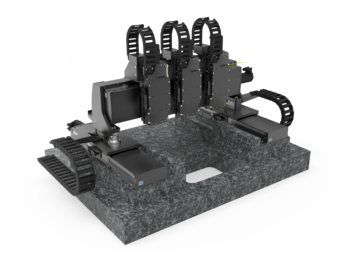

High-speed multi-axis gantry system

This versatile adaptable gantry for overhead applications is freely configurable in number of axes, size and drive from the standard stages of the PLT series. Three or more customer-specific processing heads, cameras, sensors, etc. can be adapted to the enhanced traverse.

Flexible and automated 24/7 operation

  • Ideal for integrated inline quality control, high-speed pick-and-place tasks and combined applications
  • Three freely configurable axes on the crosshead for individual all overhead applications
  • High throughput due to travels of 500 x 700 x 100 mm, expandable to 1000 mm
  • Outstanding high repeatability up to 0.4 µm
  • Uncoupling between the gantry axes and the crosshead for easy controllability via motor encoders and avoidance of overdetermination

Optionally expandable:

  • Expansion with additional Z-axes for integration of further processing heads, cameras or sensors
  • Adaptation of the traverse paths for the production area
  • Safety enclosure
  • Base plate made of granite, aluminum or other materials
  • Versions for clean room ISO 14644-1 (up to class 1 on request)
  • Integration into the customer specific overall application
  • Bus-capable fully interpolating industrial controller for integration into almost any automation environment

    Individual extensions and customizations

    Engineering services include the fitting of the systems to your structure and the desired controlls. Furthermore, we develop prototypes and like to adapt the systems to the environmental requirements of your application particle emission, radiation, temperature, precision special parts manufacturing, working height, collision protection, safety concept, compensation factor and filter, sensor mounting, brake, decoupling, special lubrication, special colors, holders, adapters, special motors with pharmaceutical approval, comprehensive documentation, test protocoll, llife cycle tests

    Fields of application

    Setup and expansion of integrated processes, automated optical inspection (AOI), automated assembly, quality assurance, wafer inspection, 3D printing, pick-and-place applications, inline measurement



    782300:171.26   X Y Z 1, 2 , 3
    Standard System   PLT240-DLM PLT240-DLM PLT165-DLM
    Travel [mm; deg] 500 700 100
    Repeatability unidirectional [µm; deg] ± 0.4 ± 0.4 ± 0.4
    Repeatability bidirectional [µm; deg] ± 0.5 ± 0.5 ± 0.5
    Positioning speed [mm/s; deg/s] 790 1000 470
    Max. load [N] 1010 1010 260
    Motor

    Iron Core Dynamic Linear Motor

    Iron Core Dynamic Linear Motor

    Iron Core Dynamic Linear Motor

    Guide   Profile Rail Profile Rail Profile Rail
    Feedback   Linear Scale Linear Scale Linear Scale
