Multi Axes Systems

MP63-3 Miniature XYZ Positioning System, cartesian | DC Motor / Stepper Motor, Lead Screw | Rep ± 0.8 µm | Travel 25 x 25 x 25 mm
Compact Multi Axis Stages

782327:092.26 (782327:003.24)

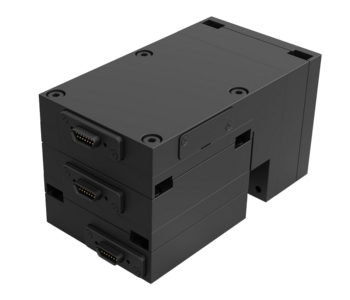

Highly compact 3-axis adjustment system

This miniaturized X-Y-Z system is ideal for positioning applications where space is limited. Combined with a fine thread spindle, the XYZ Stage achieves very high resolution values. At the same time, this high-precision positioning system offers a very good price/performance ratio.

very high resolution rates

ideal for limited construction spaces

load capacity up to 10 N

finer adjustment for applications due to a fine-thread spindle

long service lifetime and particularly precise motion via profiled rail bearing

Fields of application

micro-machining and micro-assembly, research and development, special machinery construction, alignment of optical components, automatic wafer tests, assembling technology in silicon photonics

Specifications

MP63-DC		X	Y	Z
Standard System		MT63-DC	MT63-DC	MT63-DC
Travel	[mm]	25	25	25
Repeatability unidirectional	[µm]	± 0.8	± 0.8	± 0.8
Repeatability bidirectional	[µm]	± 3.8	± 3.8	± 3.8
Positioning speed	[mm/s]	1.8	1.8	0.9
Max. load	[mm/s]	3.6	3.6	1.8
Max. last	[N]	10	10	10
Length x Width x Height	[mm]	112 x 63 x 64
Motor		DC-Motor	DC-Motor	DC-Motor
Guide		Profile Rail	Profile Rail	Profile Rail
Feedback		Motor-Encoder	Motor-Encoder	Motor-Encoder

MP63-SM		X	Y	Z
Standard System		MT63-SM	MT63-SM	MT63-SM
Travel	[mm]	25	25	25
Repeatability unidirectional	[µm]	± 1	± 1	± 1
Repeatability bidirectional	[µm]	± 4	± 4	± 4
Positioning speed	[mm/s]	1.3	1.3	1.3
Max. load	[mm/s]	2.6	2.6	2.6
Max. last	[N]	10	10	10
Length x Width x Height	[mm]	112 x 63 x 64
Motor		Stepper Motor	Stepper Motor	Stepper Motor
Guide		Profile Rail	Profile Rail	Profile Rail
Feedback		-	-	-

Controllers

PLC

We support integration of our systems into PLC architectures, e.g. Beckhoff

Downloads

STM_MP63-3_DC-R-XYZ-compact-miniature-multia-axis-stage_interface.PDF

Used Standard Components

MT63-DC

Micro stage for high precision applications. Driven by a DC Motor.

MT63-SM

Micro stage for high precision applications. Driven by a stepper motor.
